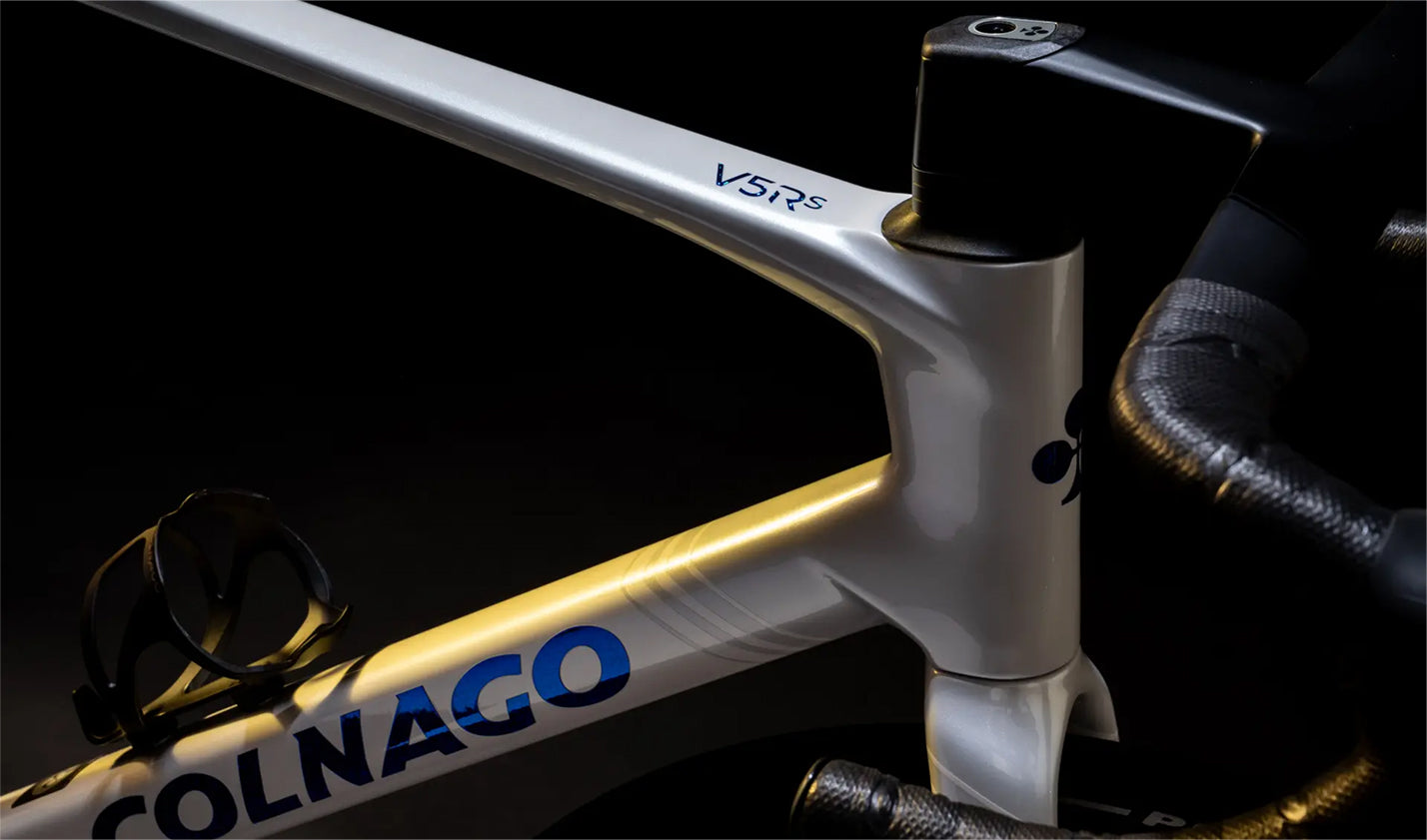

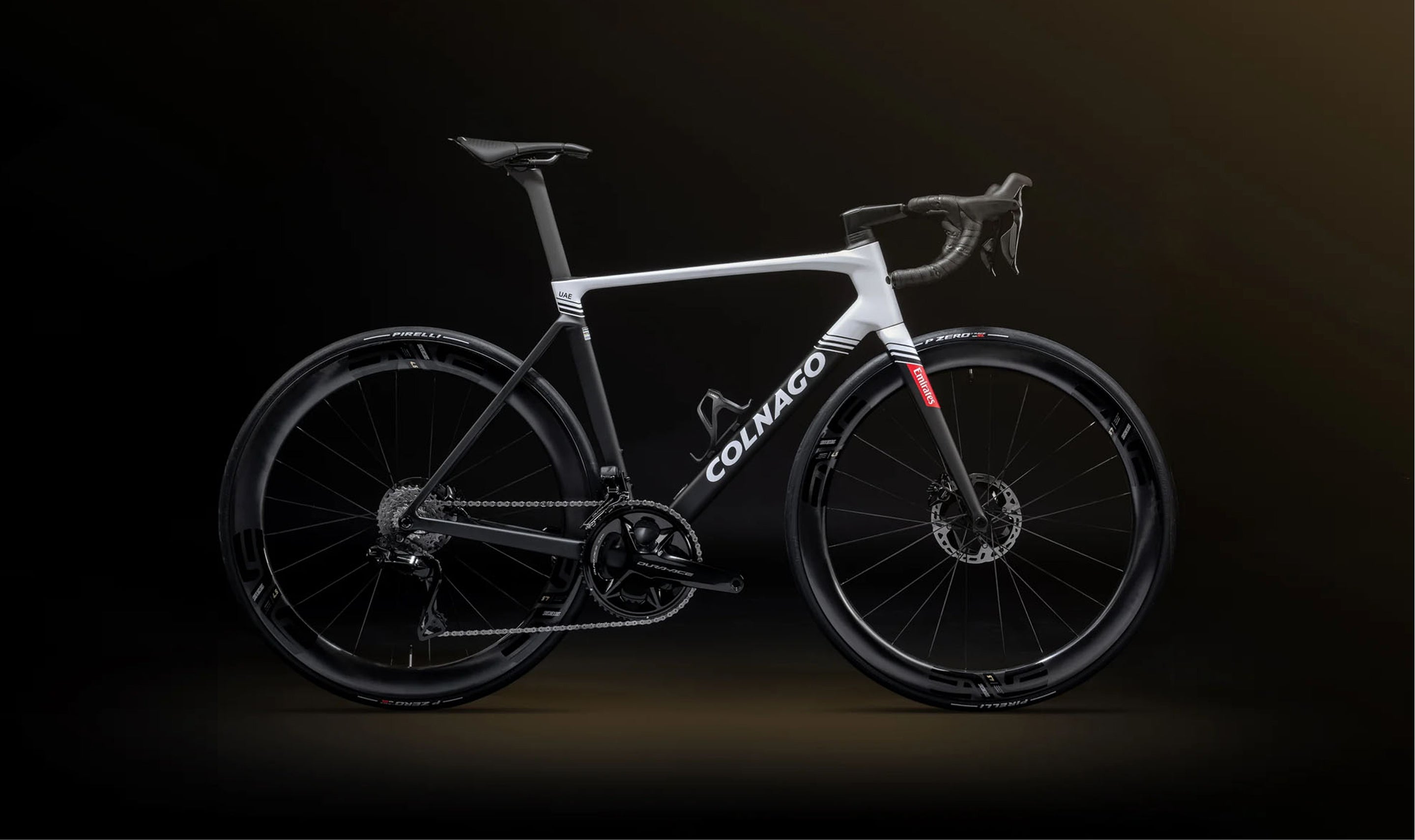

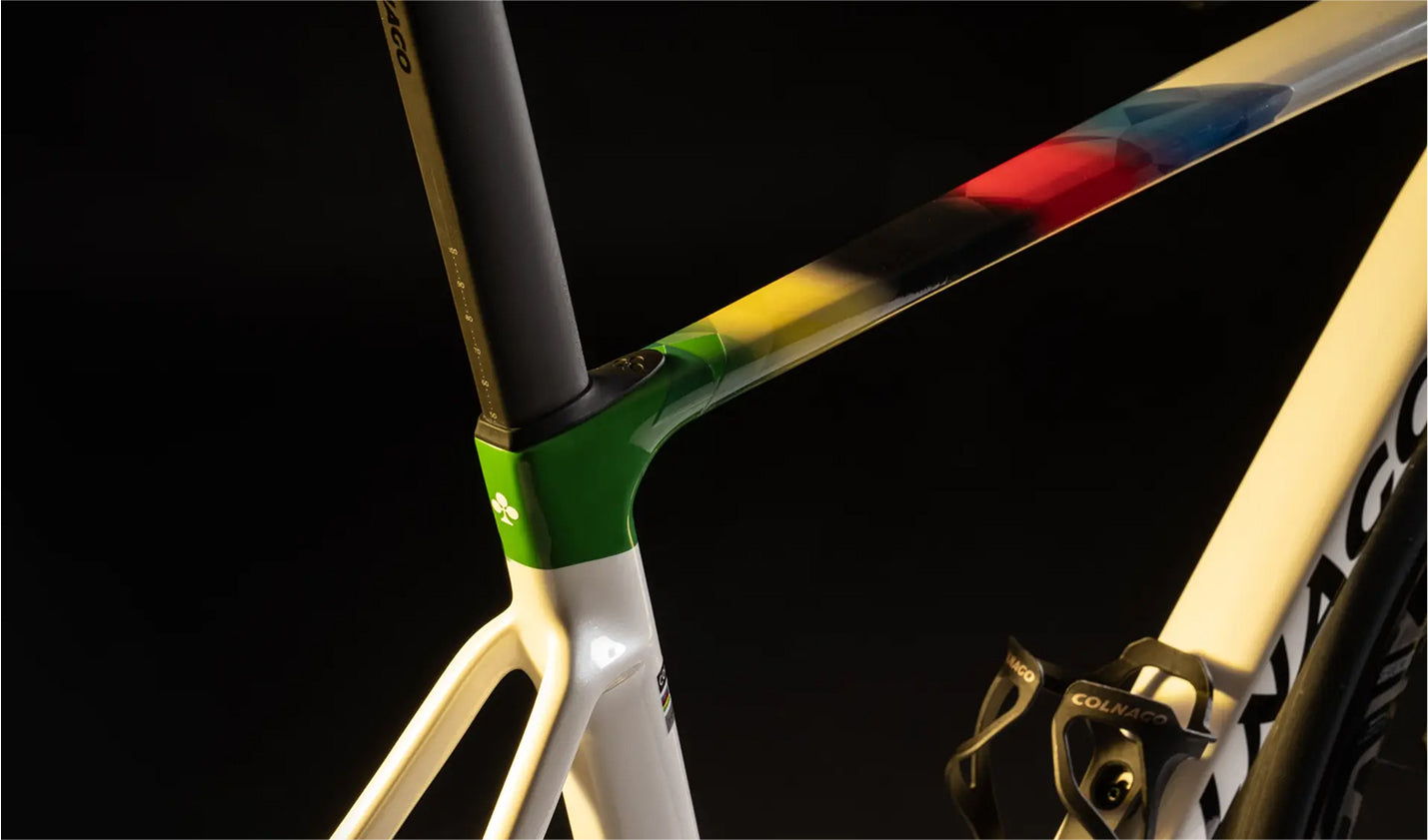

Colnago V5Rs
The Colnago V5Rs
Ultimate all-round racing bike. Built to win. Read more
Above and Beyond
Since 2006, we've been creating the world's finest dream bikes with our signature approach to custom builds and customer service.
Our Custom Program
AC Everywhere
You can find us just over Golden Gate Bridge in California's Marin County. Can’t come to us? We can bring the bike to you. We craft custom bikes for clients all across the U.S. and the world.
Contact us
Premier Partner
Questions about your build? Take advantage of our deep knowledge and unbeatable experience as a premier Colnago partner.
Contact us
Description
V5Rs is a WorldTour-caliber chassis that rewards precise input with clean, immediate response. It’s the sharpest-handling Colnago we’ve ridden. More planted in corners than V3Rs, more rigid under load, and lighter in a meaningful way. You can feel it from the first rise out of the saddle. This is a bike built to go fast, and it feels that way under pressure.
We’ve tested V5Rs on fast local circuits, alpine climbs, and wind-exposed valley roads. Across all of it, the ride character holds steady: composed, reactive, aerodynamic enough to matter, and stiff enough to carry torque through each turn of the crank without ever feeling wooden. That’s where this bike stands out. You get the watt transfer of a deep-section aero platform, with handling that feels trimmed and centered through every corner entry and exit.
Fit and position are straightforward thanks to the integrated cockpit system. No fuss, no posture compromises, and a front end that stays quiet at speed. The V5Rs is available with Campagnolo Super Record WRL, Shimano Dura-Ace Di2 Disc 12s, Shimano Ultegra Di2 12s, SRAM Red eTAP AXS, and SRAM Force eTAP AXS. Every group complements the frame differently, but the underlying character remains: this is a modern race bike with serious legs, trimmed of excess, and shaped by actual input from UAE Team Emirates. No myth, no legacy nostalgia—just a frame that delivers when it counts.
Features
Example Build
Ordering Process
- The ultimate all-around racing bike.
- Colnago’s lightest frame ever built—685 grams without compromising rigidity.
- 13% less frontal area than its predecessor, trimmed to save watts where it counts.
- Lighter, sharper fork with 32 mm clearance for grip and control at speed.
- New lamination techniques control carbon placement throughout the frame for a lighter, stronger, longer-lasting structure.
- Frame: Colnago V5Rs Monocoque Carbon
- Fork: Carbon Fork for Disc Brakes, Integrated Cables, Semi-Circular Section
- Groupset Options: Campagnolo Super Record WRL, Shimano Dura-Ace Di2 Disc 12s, Shimano Ultegra Di2 12s, SRAM Red eTAP AXS, and SRAM Force eTAP AXS
- Headset: 1"1/8 and 1"1/4 – SLT Treated Bearings
- Seatpost: Carbon, 15mm Offset (Standard Option); 0mm Offset (Sold Separately)
- Bottom Bracket: BSA (English Threaded) – Campagnolo
- Through Axles: 12mm. length 100mm (front) - 142 (rear)
- Max Tire Clearance: 32 mm
- Handlebar: Colnago CC.01 Integrated Cockpit – Regular Geometry
- Stem: CC.01 Integrated Cockpit
Whether you’re already set on a certain make and model of frame, or still have some questions about how to go about your build, drop us a line and we can talk through your options. From the first detail to the final finish, we'll help you dial in the perfect set up for your next dream bike.
