Custom Sarto Gravel TA

Custom Sarto Gravel TA

The Custom Sarto Gravel TA

Builds starting from $8600

Sleek and fast with minimal accessory mounts, or adventure-forward, with pannier and bottle bosses galore - if you can dream it, the Gravel TA can do it. Read more

Above and Beyond Since 2006, we've been creating the world's finest dream bikes with our signature approach to custom builds and customer service. Our Custom Program
AC Everywhere You can find us just over Golden Gate Bridge in California's Marin County. Can’t come to us? We can bring the bike to you. We craft custom bikes for clients all across the U.S. and the world. Contact us
Premier Partner Questions about your build? Take advantage of our deep knowledge and unbeatable experience as a premier Sarto partner. Contact us
Custom Sarto Gravel TA
Custom Sarto Gravel TA
Custom Sarto Gravel TA
Custom Sarto Gravel TA

Description

Depending on who you ask, a gravel bike can be a lot of different things. To some, it's a glorified road bike with a little extra room for bigger tires, ready for the occasional venture off the road. To others, it's an all-terrain touring bike capable of lugging all of your gear into the woods for backcountry adventures. And for some, a gravel bike is a full on drop bar shred sled, crossing into mountain bike territory. With the Sarto Gravel TA, any vision of a gravel bike you have can be achieved.

No matter your off road desires, the Gravel TA can be custom tailored to fulfill your dreams. There's no shortage of tire clearance, with room to easily fit 700x43c or 27.5x2" rubber.

Like all Sartos, each and every Gravel TA is made to order. While "stock" options are available, custom sizing and personalized paint can easily be had. Contact us today to get the ball rolling on your dream carbon gravel bike.

Features

Example Build

Options

Ordering Process

  • Head tube: 1” 1/8 - 1” ½
  • Bottom bracket: PRESS FIT 86.5

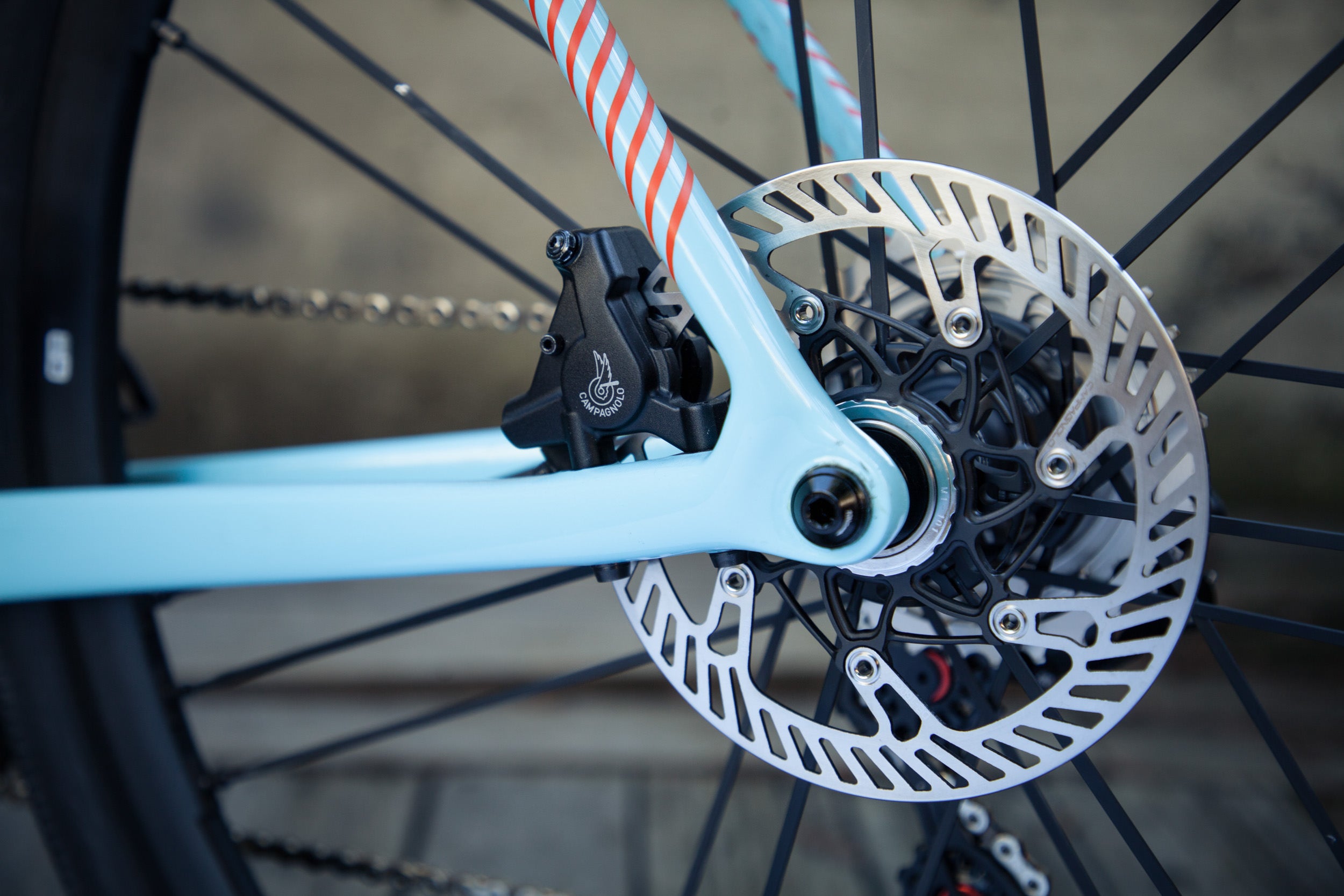

  • Brakes: Flat mount disc brakes ( thru axle 100x12f – 142x12r)
  • Wheels: 700 x40 / 650B X 47
  • Seat tube: Ø 34,9 mm for seat post Ø 31,6 mm
  • Frame weight: 1050 grams
  • Fork weight: 430 grams
  • Stiffness value: 115 N/mm
  • Outer lamination: 3k Carbon Fiber
  • Inner lamination: M40J/Kraibon
  • Weights shown in size medium, ready to paint. Paint can add anywhere between 80-200 grams to a given frameset
  • Integrated seat tube
  • PRESS FIT 386 bottom bracket
  • Optimization for gear Di2 - EPS - Wireless or Universal system (mechanical/electronic Di2)
  • Head tube for Chris King I7 headset

Whether you’re already set on a certain make and model of frame, or still have some questions about how to go about your build, drop us a line and we can talk through your options. From the first detail to the final finish, we'll help you dial in the perfect set up for your next dream bike.
